Aluminium Foil Rewinder

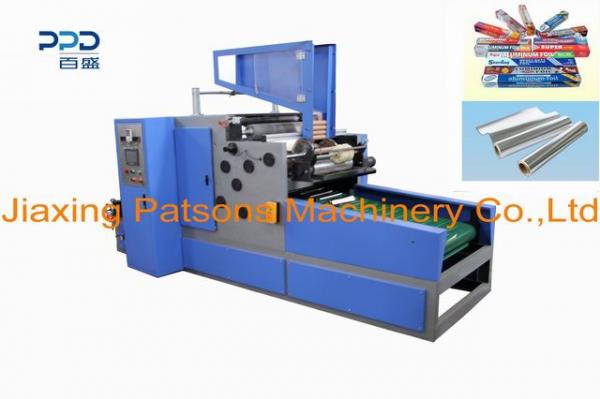

Fully Automatic Household Foil Rewinding Machine
PPD-AAR450
Machine is widely used for making aluminium catering foil roll,Household foil roll,Kitchen foil roll, household foil roll,and other aluminium foil roll products.With PLC man-machine interface communication,touch color screen operation,it is very user friendly model.
Machine is with 4 shaft automatic exchange,automatic gluing,automatic rewinding,automatic stop when reach the setting length,automatic cut off,automatic deliver to packing area.
Main Specs:
Raw materials aluminium foil thickness : 7-30micro
Raw materials width : 250 to 600mm roll width
Maximum unwind roll diameter: 600mm diameter
Finished Roll Rewinding Core ID： 30mm, 34mm,38mm(or any optional)
Raw material mother roll core ID: 75 to 76mm (core id)
Slitting length finished roll control： 3M to 330M
Production Speed (basing 5M length： between 7-10 rolls / minute
Unloading magnetic power brake： 25N.M
Winding magnetic power clutch： 12N.M
Total Power： 4KW
Voltage： 380/415v option
Weight of machine ： 1700kg
Aluminum Foil Rewinder, Household Foil Rewinder, Kitchen Foil Rewinder
