Four Side Sealing & Packaging Machine

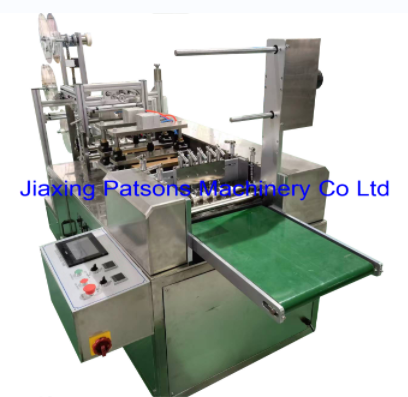

Oral Dispersal Film Packaging Machine
PPD-ODFP
Oral dispersal film packaging machine is an automatic packaging equipment with four side sealing, suitable for packaging oral dispersion film, VC nutrition oral film, breath clearing soluble film,nicotine oral film, red ginseng flash release film and other oral dissolving film.Machine features:
1. The machine has a slitting function, which cuts raw material rolls into narrow strips and packages them in 4 lanes, resulting in fast production speed.
2. Equipped with a touch screen and PLC programmable control for the overall operation, the operation is simple.
3. The machine has a high degree of automation, with automatic cutting, automatic bag making, and automatic packaging. Good heat sealing effect and beautiful product.
Main Data:
Model: PPD-ODFP
Coating width: up to 320mm wide
Coating thickness: 0.02-0.1mm adjustable
Coating speed: 0.01-1m/min (depending on different products)
Bottom support substrate width: 350mm, Φ ≤ 350mm, paper tube inner diameter of 3inch
Total power: 220V 50Hz
Power: 12kw
Gas consumption: ≥ 30m3/h (self provided)
Pressure: 0.6-0.8Mpa
