Non Woven Fabrics Machinery

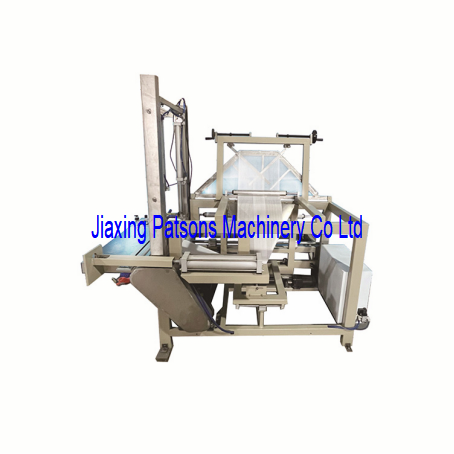

Medical Gauze Roll Folding Rewinding Machine
PPD-GFR900
Medical gauze roll folding rewinding machine is an important equipment in the production of medical gauze. It is mainly used to fold and rewind large rolls of gauze raw materials into gauze rolls that meet medical standards. It is widely used in the medical industry.Machine features:
1. The machine uses air shaft device to unwind, and the tension control system ensures smooth unwinding without wrinkles.
2. A photoelectric sensor is used to detect the edge of the gauze, and the position is adjusted by an automatic deviation correction device to ensure neat folding.
3. The servo-controlled folding mechanism folds the gauze according to the set length.
4. The folded gauze is rewind into a product roll through the rewinding shaft.
Main Data:
Model: PPD-GFR900
Gauze roll width: Max 900mm
Gauze roll diameter: Max Φ700mm
Product width: 220mm
Number of product layers: 4 layers
Folding: 2 times
Rewinding speed: Max 150m/min
Voltage: 380V 3ph, 50hz
Power: 2.2kw
Medical gauze roll folding rewinding mac, Gauze roll rewinder, Gauze folding machine
