Four Side Sealing & Packaging Machine

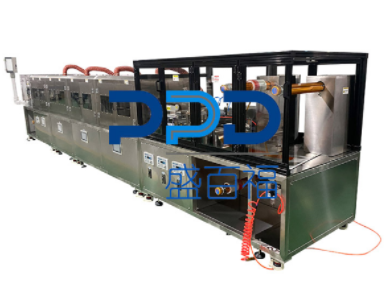

Dietary Supplements Strips Oral Film Production Line
PPD- ODFM
The dietary supplements strips oral film production line is a newly developed machine for producing various oral dissolving film products, such as dietary supplements strips, nicotine strips, breath freshener oral film, pet nutrition oral film, etc.The machine adopts advanced technology to coat, dry, roll, cut and package the dietary mixed solution ,finally obtain the dietary supplement strips, and the machine has a high degree of automation.
The machine adopts PLC and servo drive control, the machine runs stably, and it is easy to operate.
The independent oven can control the temperature in sections to accelerate the solidification of the solution.
Machine parameters:
Model: PPD- ODFM
Coating width: Max 320mm
Coating thickness: 0.02-0.1mm (adjustable)
Coating speed: 0.01-1m/minute (depending on different products)
Base material width: 350mm, Φ≤350mm,Paper core inner diameter 3 inch
Total power: 220v 50Hz
Power: 12kw
Gas consumption: ≥ 30m3/h
Pressure: 0.6-0.8Mpa
