Four Side Sealing & Packaging Machine

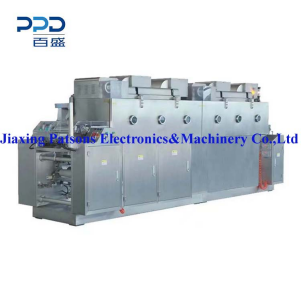

Oral Dissolving Film Making Machine
PPD- ODFM
Oral dissolving film making machine is a machine that evenly spreading liquid materials onto a bottom film and processing them into a film shape,then roll it up.The machine is suitable for producing oral thin film, vitamin strips,oral dispersible film， oral dissolving films and other products.
The machine adopts servo motor control, variable frequency speed regulation, touch screen+PLC program to control the operation of the whole machine, with high precision and automatic integrated operation.
The whole machine is made of stainless steel material, which meets the factory's production standards.
Main Data:
Model: PPD- ODFM
Coating width: Max 300mm
Coating thickness: 0.02-0.1mm
Coating speed: 0.01-1m/minute (depending on different products)
Bottom film width: 360mm, Φ ≤ 350mm, paper tube inner diameter 76.2mm
Voltage: 380v 50Hz
