Four Side Sealing & Packaging Machine

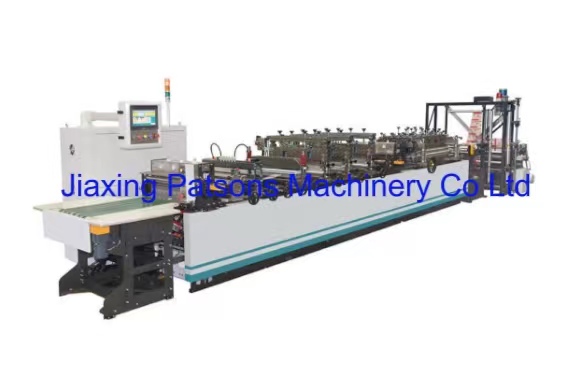

Three Side Sealing High Speed Bag Making Machine
PPD -3SBM600
Three side sealing high speed bag making machine is a structurally reasonable bag making machine,Suitable for bag making of two-layer or multi-layer composite films based on BOPP, PET, CPP, NYLON, etc.This machine is equipped with PLC and digital servo system to combine bag making accuracy with bag making speed in a reasonable way, thereby achieving high-quality and efficient bag making effect.
The machine has fast bag making speed, simple operation, flat products, and high edge sealing heat sealing strength, making it an ideal bag making equipment in the flexible packaging industry.
Main Data:
Model: PPD -3SBM600
Applicable materials: BOPP, PET, CPP, NYLON etc.
Material roll diameter: Max φ 600mm
Material width: Max 1240mm
Bag making width: 85-500mm
Bag making length: Max 500mm
Bag making speed: 30~180cut/min
Cooling water: 5 L/min
Air supply: pressure ≥ 0.6Mpa
Voltage: 380/415V, 3ph, 50Hz
Power: 35kw
