Non Woven Fabrics Machinery

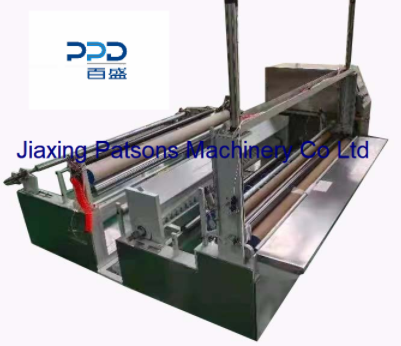

Nonwoven Fabric Servo Perforation Slitting Rewinding Machine
PPD-NPR1000

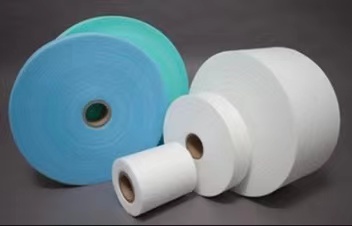

The non woven fabric servo perforation slitting rewinding machine is suitable for rewinding different non-woven fabrics, such as spunlaced non-woven fabrics, needle punched non-woven fabrics, PP non-woven fabrics, wood pulp non-woven fabrics, etc.This machine can slit into different widths according to requirements, adding a perforation function to make the product more convenient to use. It also can be used as a regular rewinder.
Machine features:
1. The machine is controlled by a servo system, ensuring stable operation and fast rewinding speed.
2. The machine has a perforation function, and the length of perforation can be set.
3. Equipped with Chinese & English touch screen, very easy to operate.
Main Data:
Model: PPD-NPR1000
Applicable materials: 50-350g / ㎡ non-woven fabrics
Raw material width: 1000/1300/1800mm(as required)
Raw material size: Φ≤ 1200-1500mm
Paper core diameter of the raw material : Ø 76 mm
Paper core diameter of the product roll: Ø 76 mm option
Prodution speed: Max 200 m/min
Voltage: 220/380/415/450 v
Power: 3.5/7.5 kw
